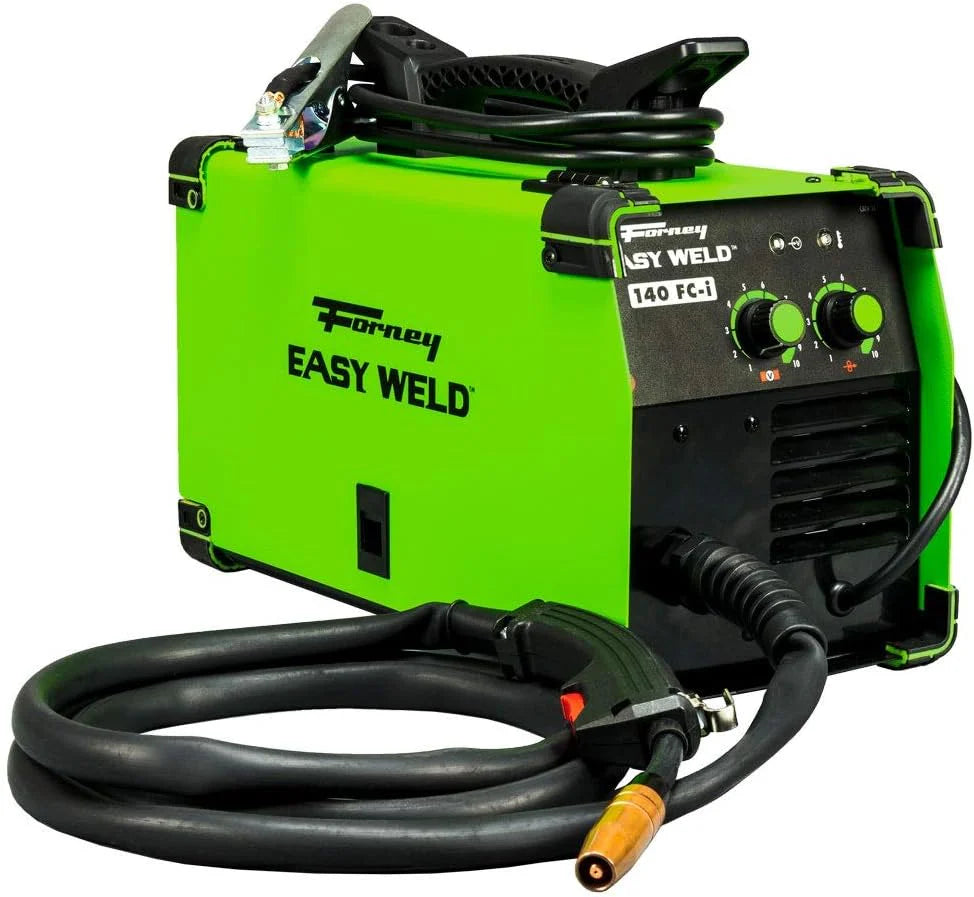

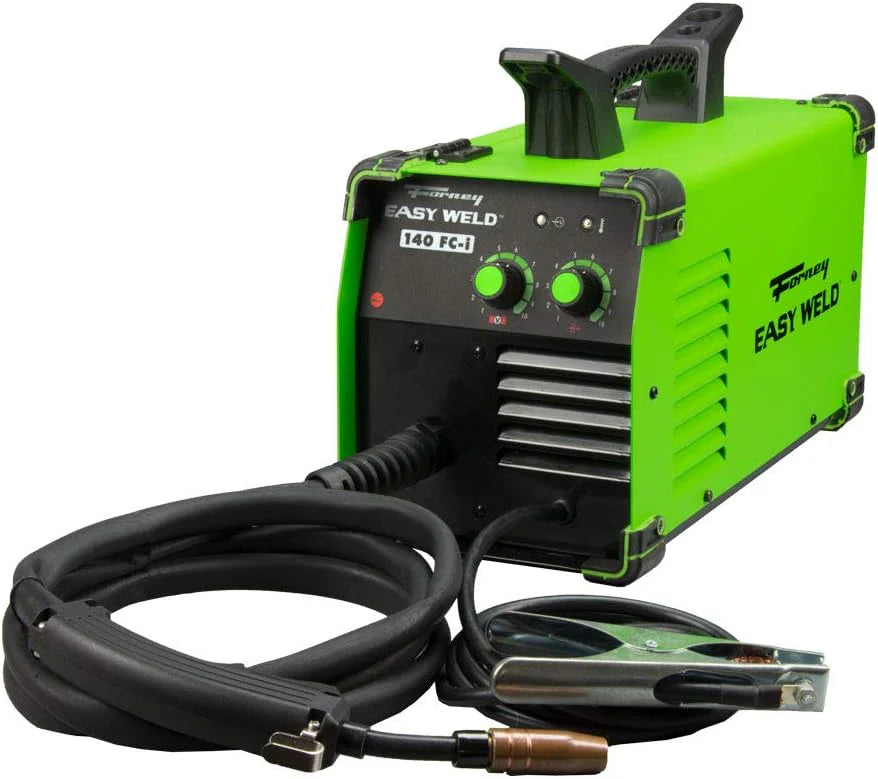

Easy Weld 261, 140 FC-i Welder, 120V, Green

EASY TO USE-140 FC-I MIG machine uses 0.30, flux core wire. It has infinite voltage and wire feed speed control so you can dial in the perfect weld! Perfect entry level welder
POWERFUL- Up to 140 Amp output that allows you to weld mild steel up to 1/4 in plate
PORTABLE WELDER- Lightweight 19 lbs. easily carried to any Do-It-Yourself, Maintenance, Repair, Metal Fabrication and Hobbyist project
RUGGED- All metal case, Built to take the day to day. Big enough to handle 2 and 10 pound rolls of wire

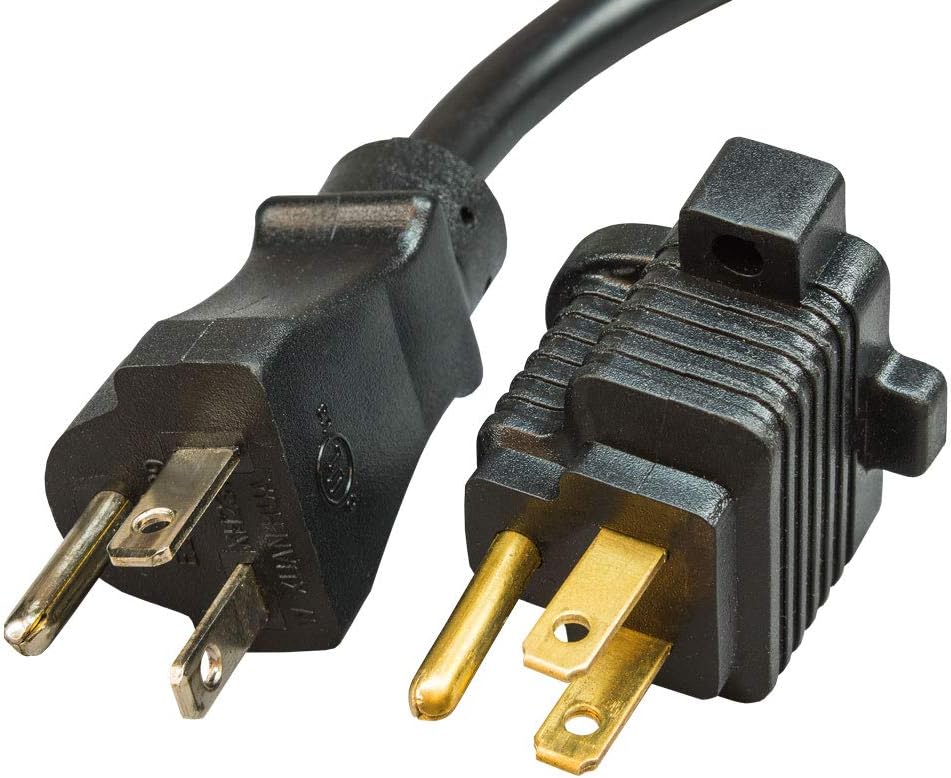

WELDER INCLUDES- 8' MIG gun, 8' ground clamp, Integrated handle with torch wrap and a 20A-15A adapter. Backed by a 12-month warranty

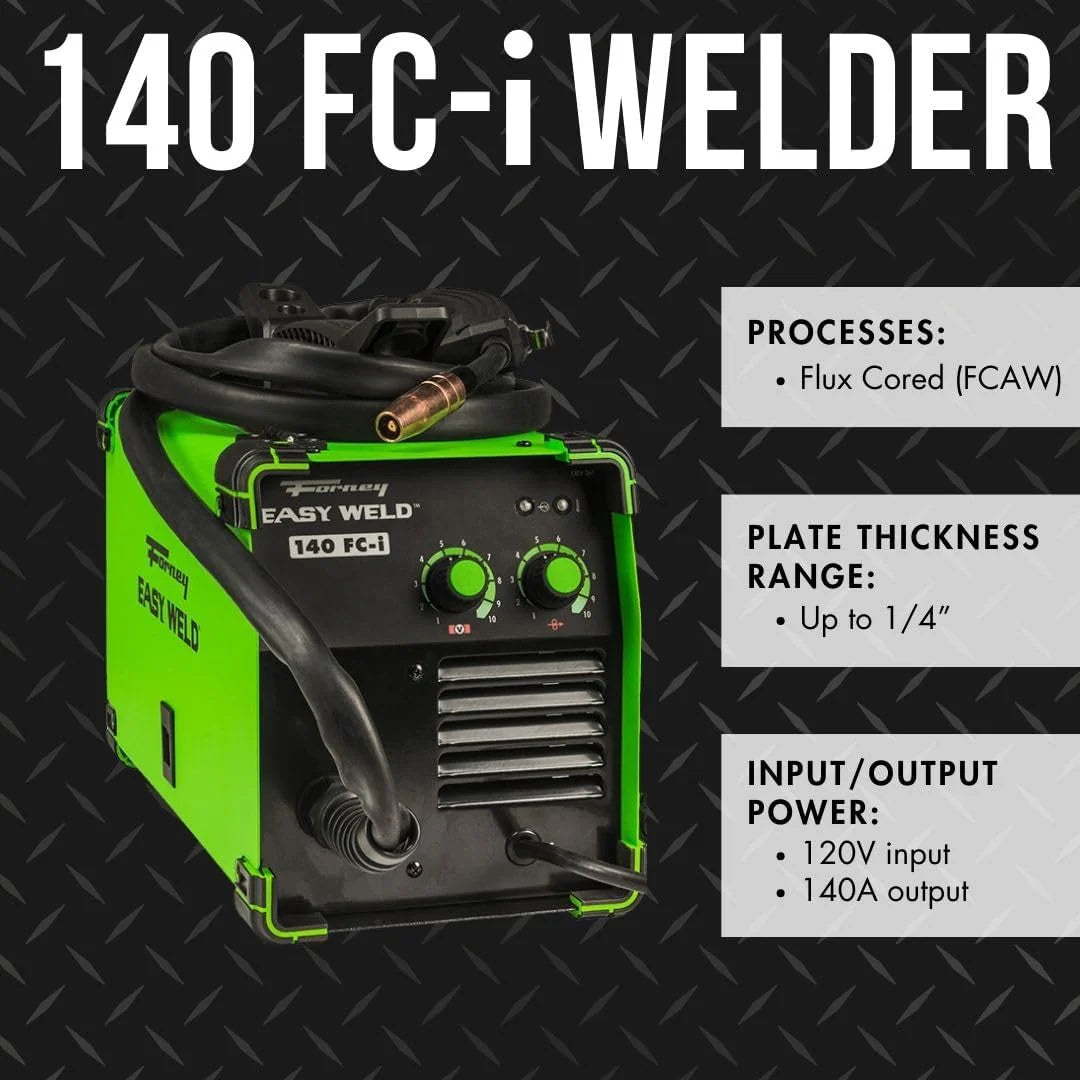

PRODUCT SPECIFICATIONS- Dimensions: 16.75" (425.45 millimeters) x 8.125" (206.38 millimeters) x 12" (304.8 millimeters), Weight: 19 lbs. (8.62 kilograms), Gasless/flux-core welding only, Portable, Torch wrap, Infinite voltage and wire feed speed control, 120-volt input, 140 AMP output, Welds up to 1/4 in. (6.35 millimeters), Handles .030 in. or 0.35 in. wire, Includes: 8' MIG gun, 8' ground clamp and 20A - 15A adapter, Duty Cycle 30% @ 90A
RECOMMENDED ACCESSORIES- Contact Tips (60170, 60171 and 60172),Welding Nozzles: (85336 and 85337), Diffuser: (85339), Flux Core MIG Wire: (42300 and 42301), Anti-Spatter Spray: (37030), Nozzle Gel: (37031)
Click on the (BY FORNEY) name above in blue under the title to view our full catalog of Welders, Abrasives, Chain/Wire Rope, Tools and more!





Part Number
?261


Item Weight
?19 pounds


Product Dimensions
?16.7 x 12 x 8.1 inches


Item model number
?261


Is Discontinued By Manufacturer
?No


Size
?120V


Color
?Green


Style
?Welder


Material
?Metal


Power Source
?AC


Item Package Quantity
?1


Cord Length
?6 Feet


Measurement System
?Metric


Special Features
?Lightweight


Usage
?Amateur, Professional


Included Components
?8' MIG gun, 8' ground clamp and 20A - 15A adapter


Batteries Included?
?No


Batteries Required?
?No


Warranty Description
?12 month















































?













Forney Easy Weld 140 FC-i Welder
Forney 261
The Forney 140 welder is an impressive Flux-Core capable welder. Perfect for first time welders up to avid users. Applications include do-it-yourself projects, general metal fabrication, maintenance repair, farm ranch and automotive work.




Recommended Accessories:



Contact Tips (60170, 60171 and 60172)
Welding Nozzles: (85336 and 85337)
Diffuser: (85339)
Flux Core MIG Wire: (42300 and 42301)
Anti-Spatter Spray: (37030)
Nozzle Gel: (37031)








?




Quick Start Guide





1. Read User Manual
See User Manual for step-by-step picture illustrations for a quick set-up

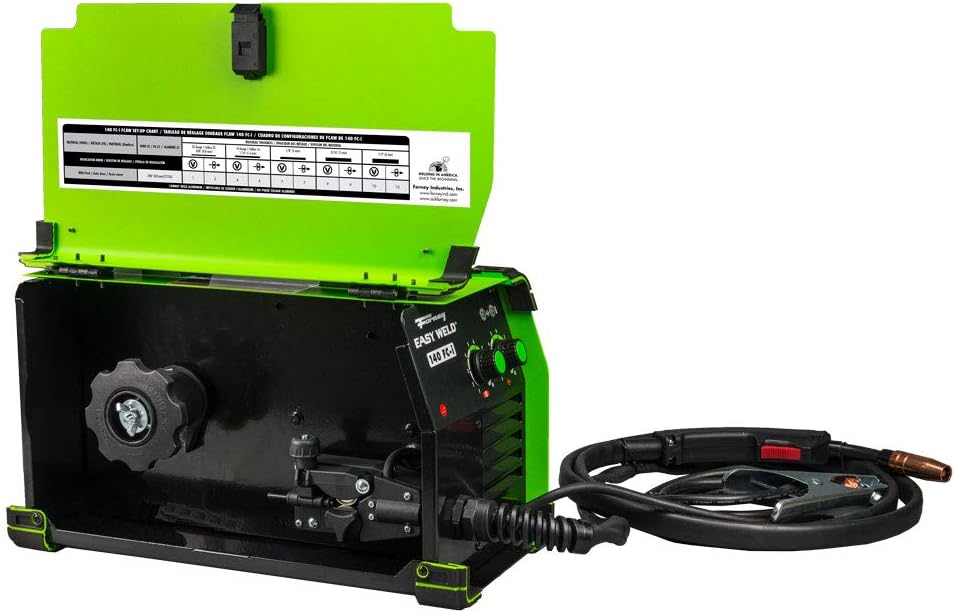

2. Install Wire Spool
0.030" (0.8mm) diameter

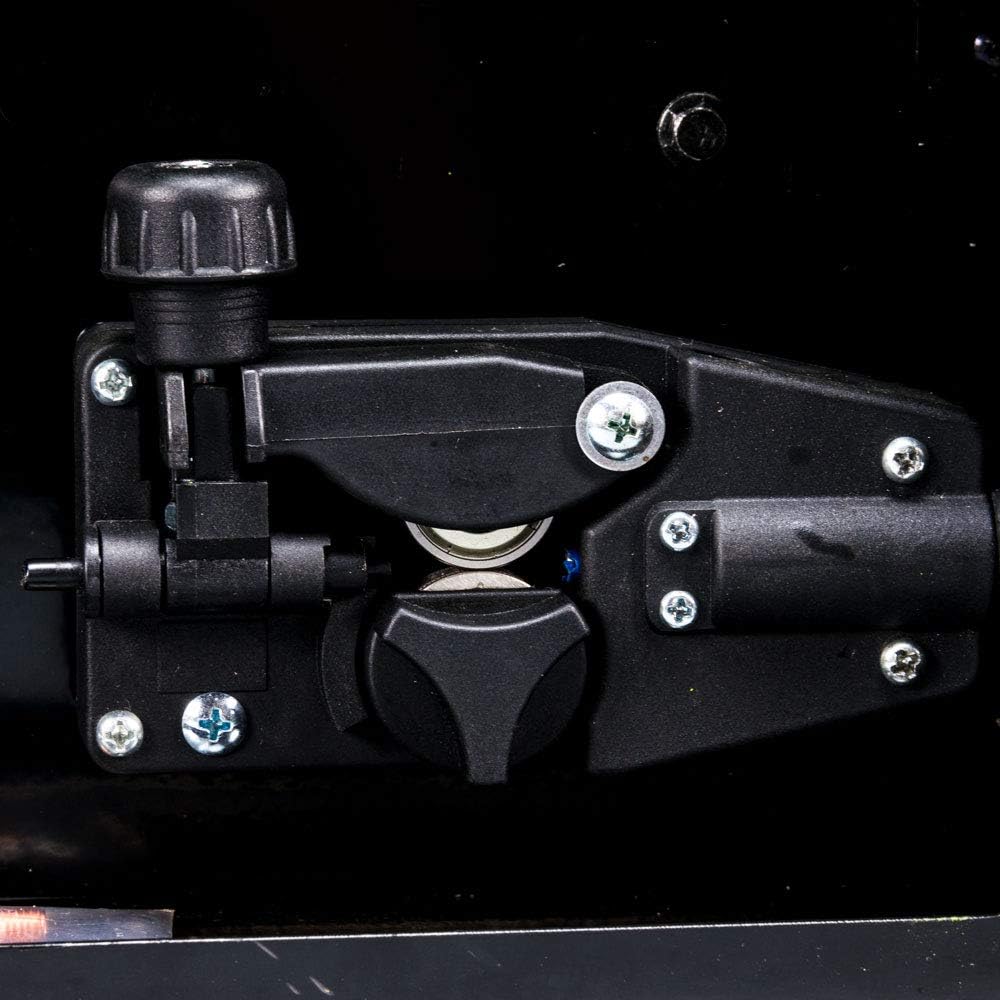

3. Set Drive Roll
Face the side marked 0.030" away from the machine


4. Feed Wire and Set Pressure
For proper tension align the tops of the bolt and nut together








5. Connect to Input Power
30A breaker recommended with a 120VAC, 20A outlet. Extension cord: #12 AWG or larger; 25' (8m) or shorter


6. Remove Consumables
Depress trigger until wire comes our. Replace with consumables


7. Adjust Wire Feed and Volts
See chart on the welder for correct settings


8. Contact Tip 1/4" from Metal
When ready depress the trigger completely to initiate the arc




















?















Technical Issues? Application Questions? We Can Help.
Thank you for choosing Forney! Please note: The store you purchased this machine from DOES NOT handle product returns. Forney Industries will repair or replace defective products at no charge to you!
When you call Forney's Technical Service department, you will speak to a trained product and application expert. Forney's Primary goal is to get your machine up and running in as little time as possible. In fact, the majority of issues can be fixed over the phone! Please be near your machine when you call, so the Forney technician can guide you.
Speaking to a Forney Technician directly helps us gather better data, and improve our products. It is our highest priority to ensure our customers are cared for.










EASY TO USE
This is the ideal entry-level welder. This machine uses .030" flux-core wire, and has infinite voltage and wire feed speed control so you can dial in the perfect weld every time.










PORTABLE
Weighing in at only 19 lbs., this machine can be easily carried to any DIY project, maintenance and repair job, garage and more!










POWERFUL
This welder features a 140 AMP output that allows you to weld up to 1/4" of mild steel. The welder is protected by an all metal case, and is big enough to handle 2 and 10 lbs. rolls of wire.











?








?








?








?






?
