220V 2.2KW CNC VFD+220V 2.2KW 4bearings 400hz 24000rpm Φ80mm Water Cooled Spindle Motor+220V 75W Water Pump+80mm Motor Clamp Mount+5m Water Pipe (Factory Direct Sales)

Speed
24000 RPM


Voltage
220 Volts


Horsepower
3 hp


Material
Stainless Steel




?

【Connection way】The package only supports AC 200V-240V 1 or 3 phase voltage input, the input wire is connected to the R and S terminals of the VFD, and the output wire is connected to the UVW terminal of the motor（pin1=U,pin2=V,pin3=W,pin4=ground）
【Parameter Settings】All basic parameterhave been set up, the customer can directly connect and start when receiving the product

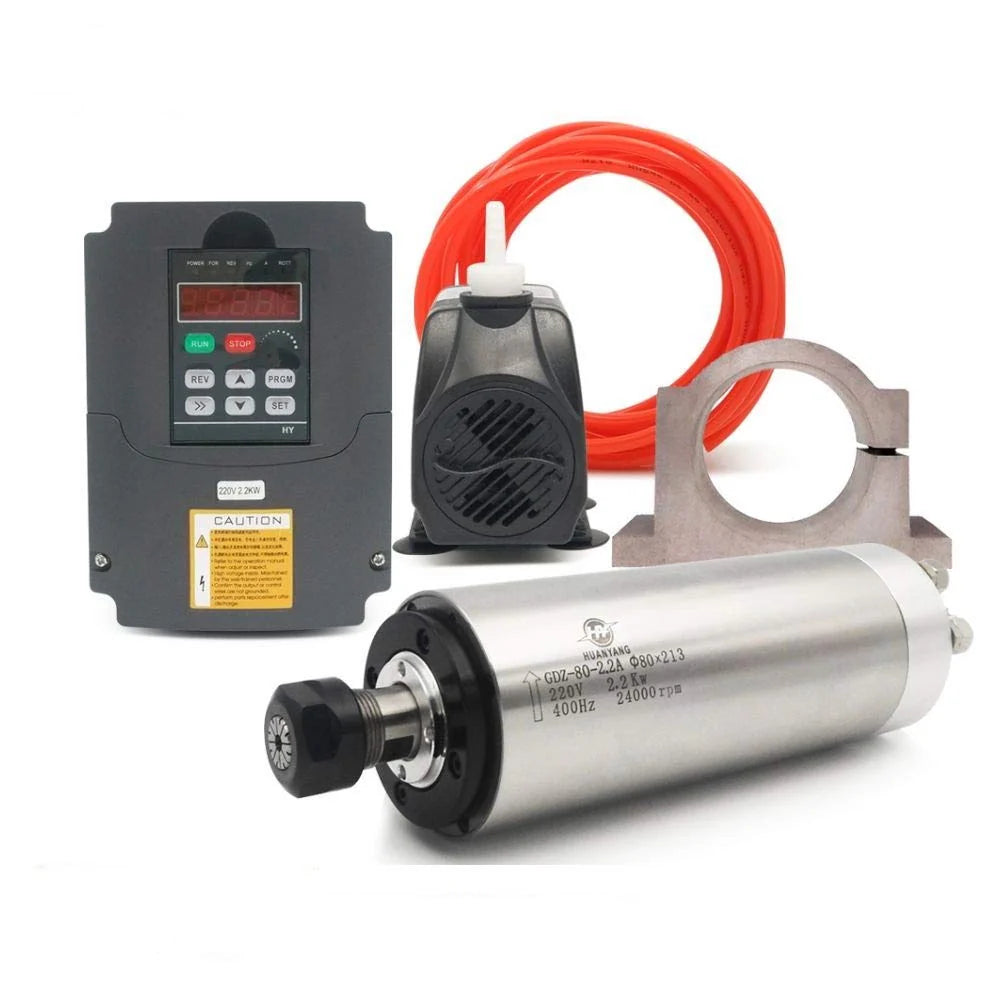

【Package Include】1 x 220V-2.2KW VFD, 1 x2.2KW Φ80mm 24000RPM ER20 Spindle.1 x 220V-75W Water Pump ,1 x 80mm motor clamp,1 x 5m horse
【Wide range of applications】The spindle motor applied to: wood carving/engraving machine, advertisement engraving machine,CNC machine, small sized processing center, high speed centrifuge etc.
【Warranty】one year warranty (The spindle is half a year).If there is an alarm in the product and you do not know how to operate, please contact the seller

?


?
















?






Packaging includes




































1 x vfd and spindle

1 X 220v input 2.2kw vfd （comes with a manual）
1 X water Cooled 220V-2.2KW 4bearings Φ80mm 400hz spindle (come with a 6mm collet)

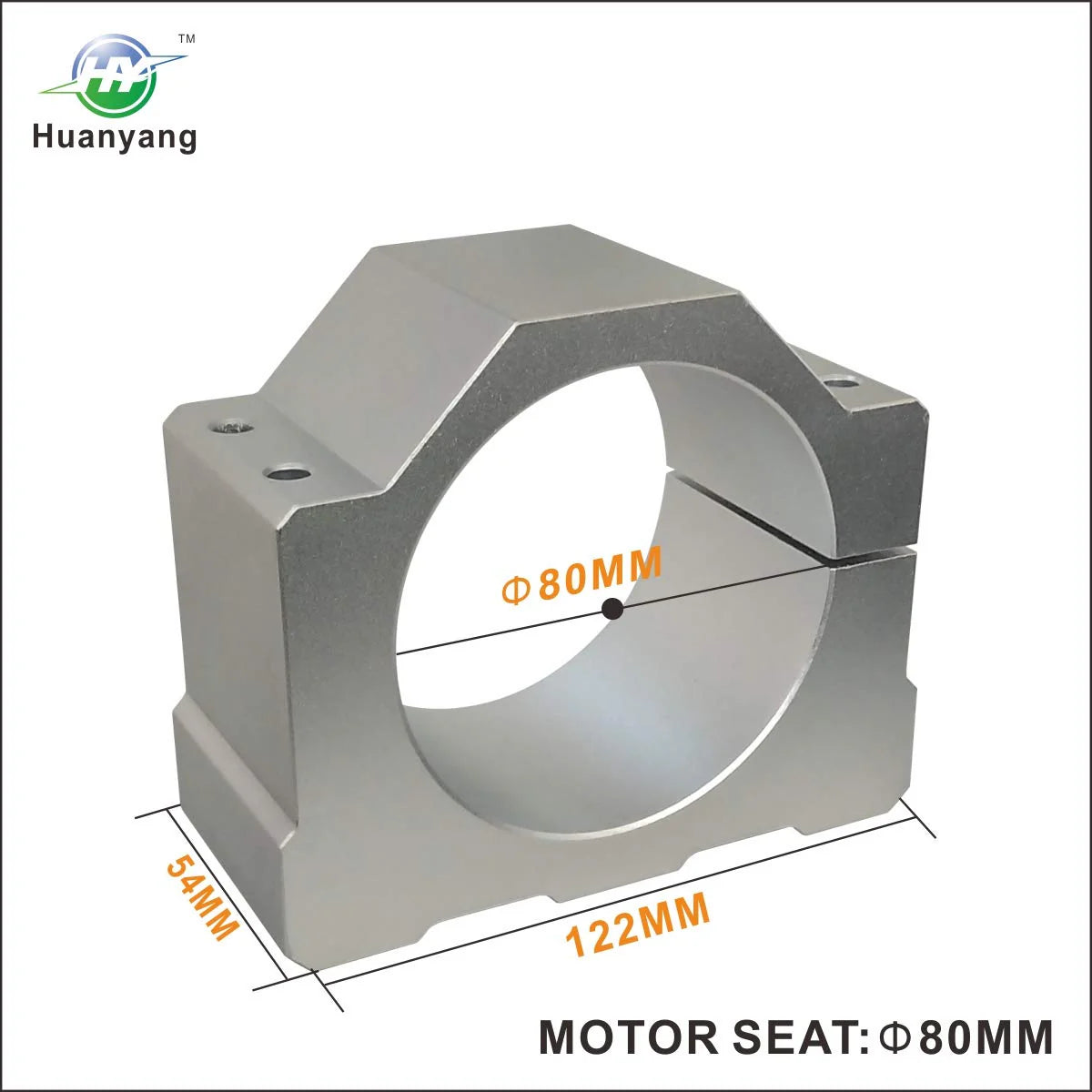

1 x 80mm motor clamp

Adopt high quality aluminum,the surface is oxidized polished, very smooth,safe to use.
the accuracy is much higher , and it is hard to deform




1 x 220v water pump

AC:220v-120V/50HZ 75W Hmax:3.2 QmaxFlow Rate:3200L/H Waterproof Grade:IPX8
Easy to detach and clean
Designed with a adjusting knob, allowing to adjust the water flow rate.
Rubber suction cups can be a good fit in the glass surface, to help keep it stability.




1 x 5m hose
5 meter length hose, outer diameter 8mm, inner diameter 6mm









?












VFD specifications

power:2.2KW
horsepower:3HP
input voltage: 1 or 3 phase 220V(±5%),
output voltage:220V 3 phase
input Frequency: 47-63Hz
output frequency:0-50/60hz 0-400hz
Rated current:10A (Represents the maximum current the VFD can withstand)





?












Spindle specifications

Bearing: 7005 (2pcs)and 7002(2pc) bearings
Voltage and rated current: AC 220V, 10A
Operating speed:8000rpm-24000rpm
Radial runout:≤0.025mm clamping mandrel vibrates at 30mm to nut
Frequencies: 400Hz
Size:80*238 (mm)
Collet: ER20 collet, 6mm is standard
Nut model: ER20-A(B)





?












Establish a connection

The single-phase input wire is connected to the R and T terminals, and the motor output wire is connected to the UVW terminal of the VFD.
basic parameters for 400hz spindle：pd013=8，pd005=400,pd004=400 pd003=400 pd072=400，pd144=3000, pd002=1 pd070=1，(All VFD parameters are set before delivery,so you can connect and drive directly after you receive the kit)





?





VFD function introduction




























Diverse terminals, more functions for you to choose.

supports external potentiometer control (connect the "FOR" and "DCM" terminals,than set PD001=1)
supports mcah3 function and RS-485 communication
(For more information, you can contact the seller, we will send you a video of the basic functions of VFD)

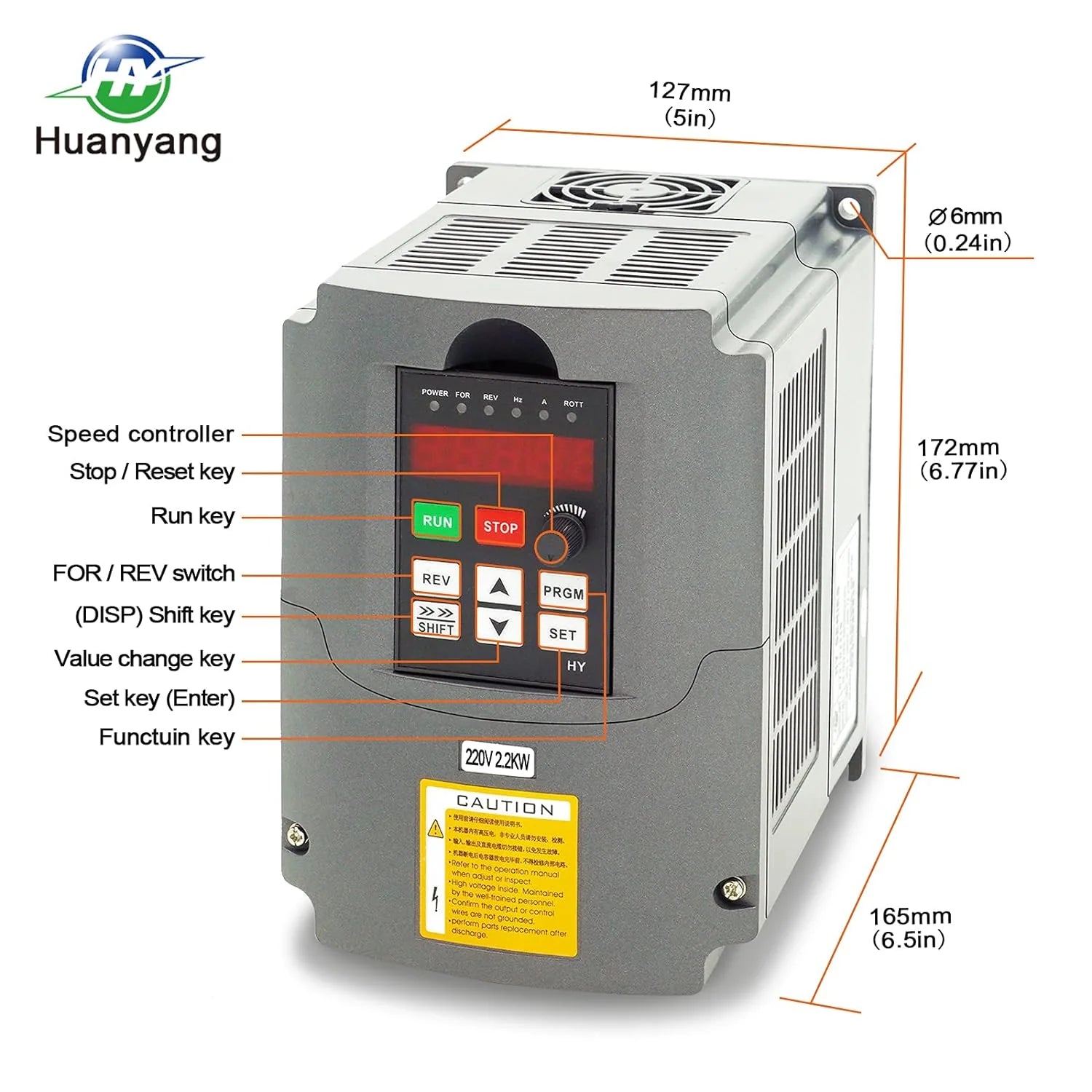

Key Function

UP: Progressively increase data or function codes.
DOWN: Progressively decrease data or function codes.
SET: Enter menus step-by-step, save setting parameters.
PRGM: Exit current(or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu.
FWD/REV: 1, Press momentary button to start,release to stop; 2 Switch the rotation direction
SHIFT: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position.
Kindly Note: If you want to show RPM in the display,please press 'SHIFT' key




Advanced motherboard features

PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability
Easy PLC function can realize 16 legs of speed and inverter control function
RS485 communication port, adopting standard international MODBUS main circuit control
With extremely strong anti-jamming capability
Low output ratting torque0.5HZ-150%, low speed running ability
Carrier adjustable by 16KHZ, completely soundless working environment
Broad voltage working area, normal running in 304V-456V
Auto voltage regulation (AVR) technique, for ensuring the inverter load capability
With perfect error protection and short circuit starting protection capability








?





Spindle introduction



















?





4 high precision bearings
With 4 high-precision bearings, high precision and strong torque are guaranteed



Aviation connector
Power interface: YX20 water proof aviation plug marked with number 1, 2, 3, 4. Number 1, 2 and 3 inter-faces are connected with inverter power U, V, W respectively. Number 4 is connected with earth wire



NOTE
It is recommended that only the spindle be used to cut the wood, which can improve the service life of the bearing







?
