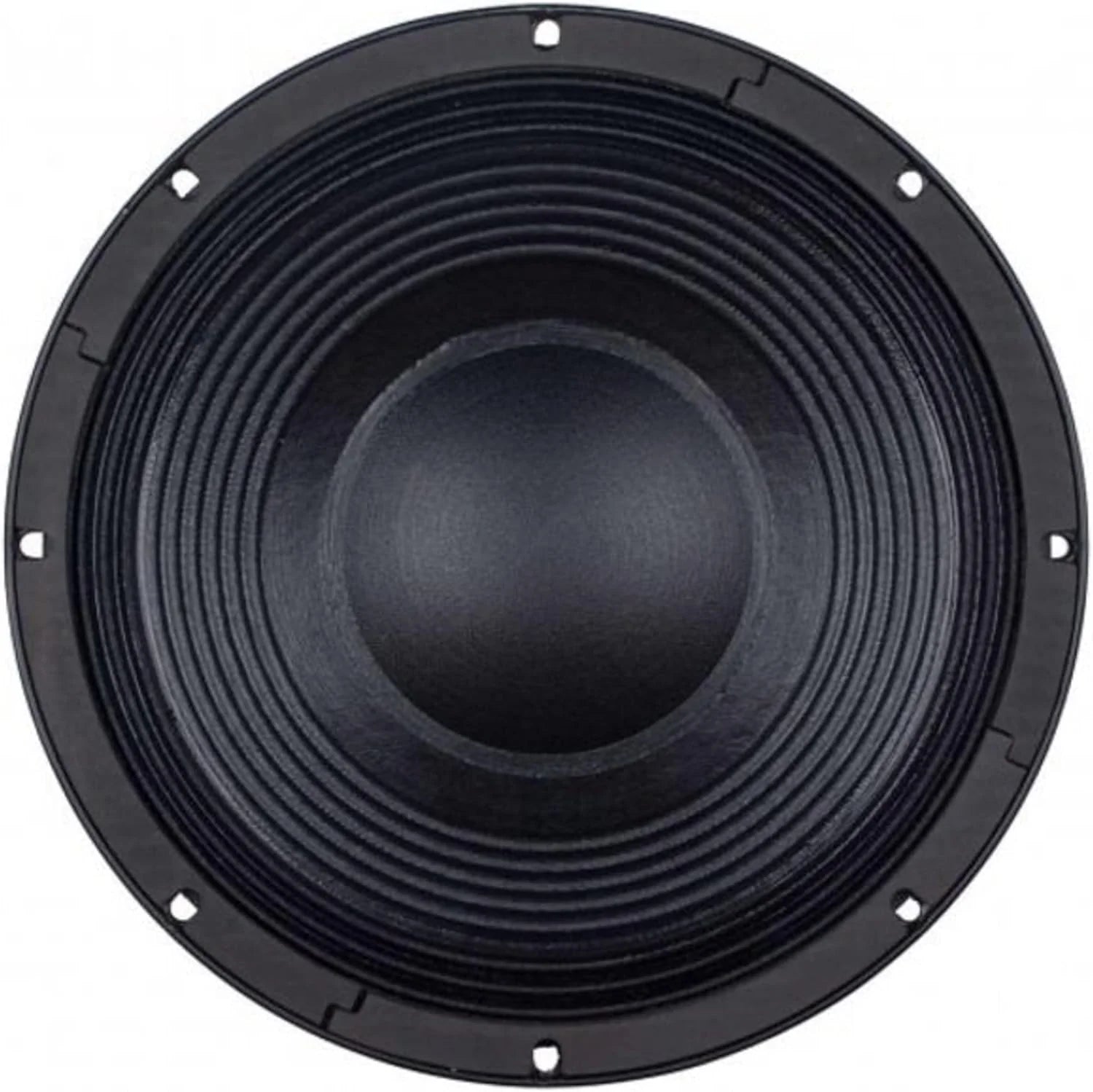

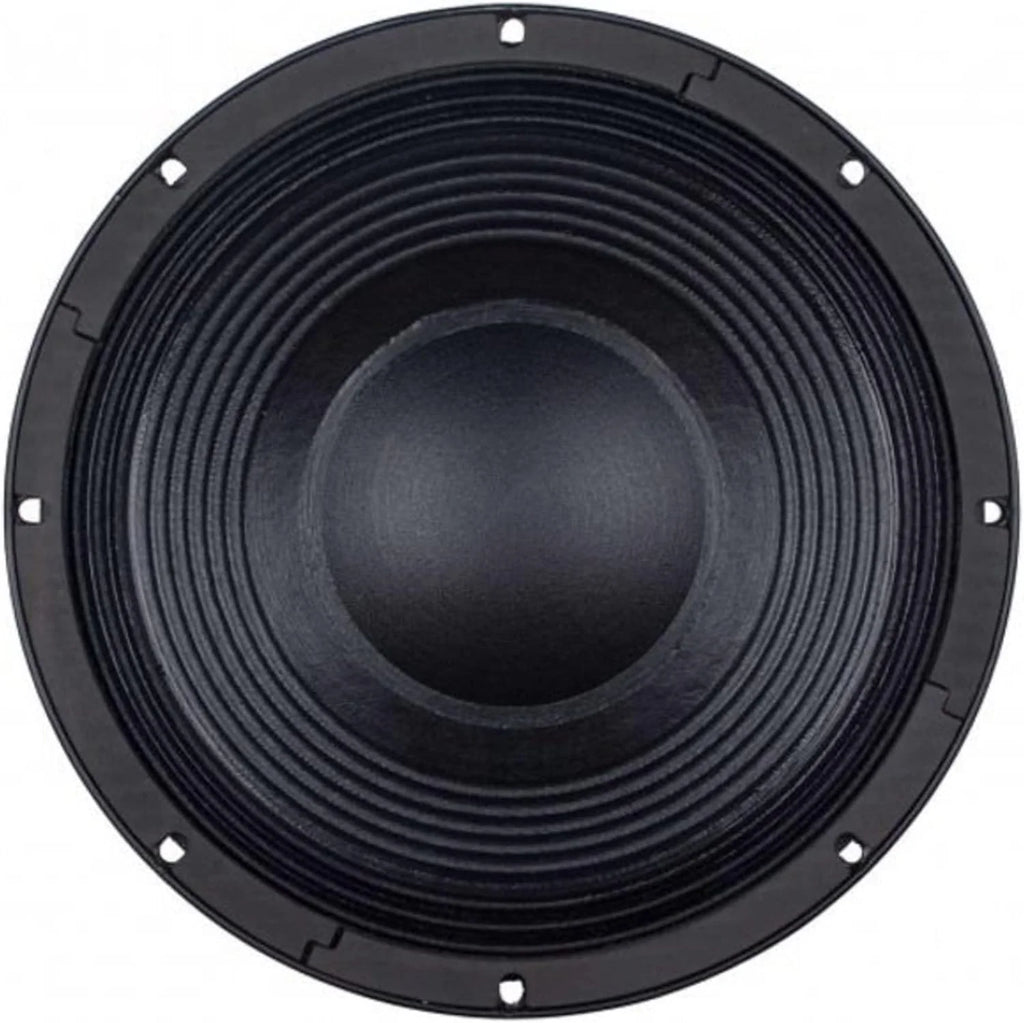

12NBX100-4 LF Drivers 12-Inch NEO MID BASS 4 Ohm 2000 Watt Copper Voice Coil 100mm 500 Watts Rms 1000 Watts Max Pro Audio Component Speaker Driver for Motorcycle Car

Model Name
BC Speakers


?
Woofer


?
Auxiliary


Special Feature
Bass Boost


?

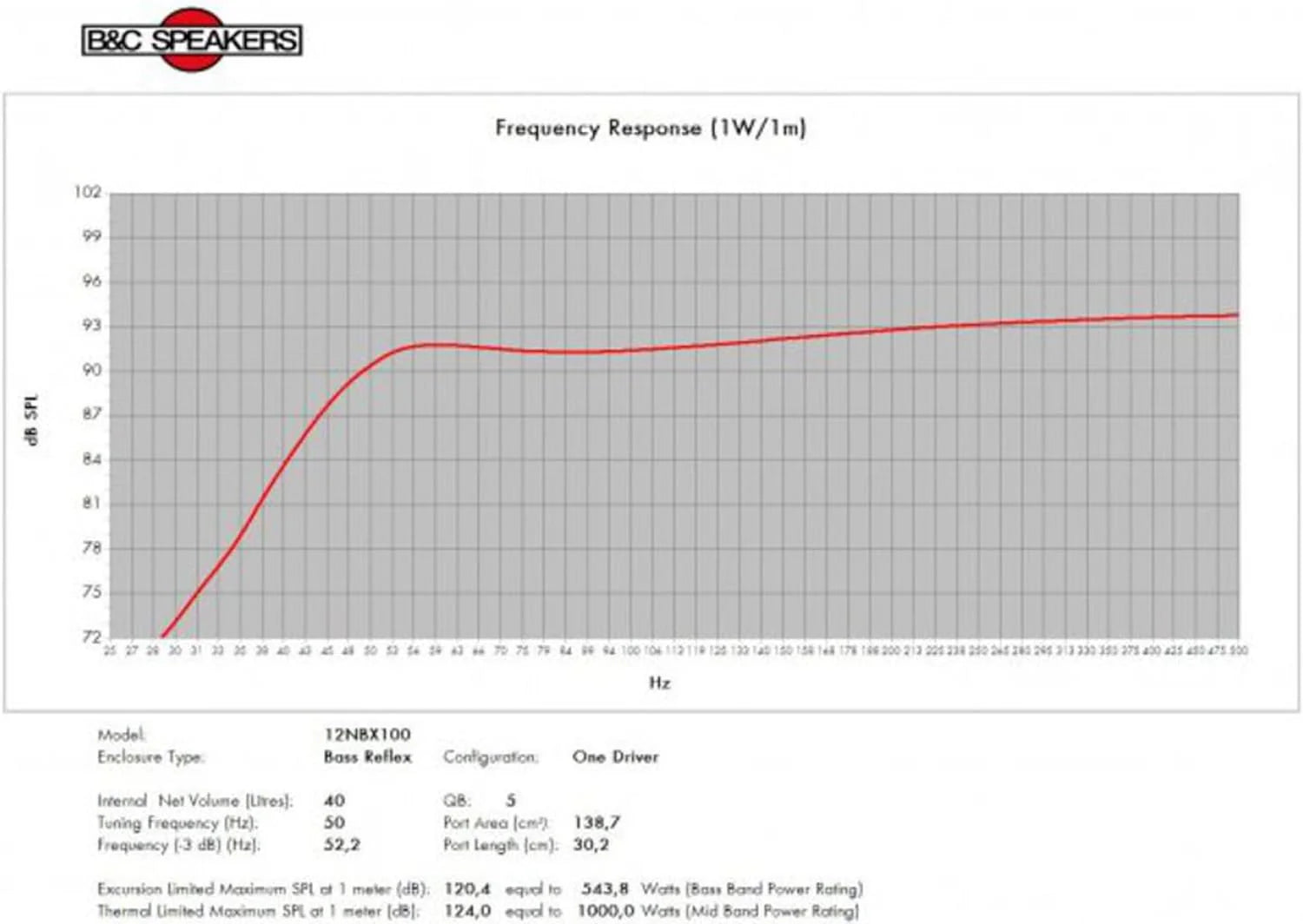

2000 W continuous program power capacity || 100 mm (4 in) copper voice coil || 40 - 1500 Hz response || 94 dB sensitivity || Aluminium demodulating ring allows a very low distortion figure || Double silicone spider with optimized compliance || Ventilated voice coil gap for reduced power compression
SPECIFICATIONS || Nominal Diameter :: 320 mm (12.0 in) || Nominal Impedance :: 4 Ω || Minimum Impedance :: 4.5 Ω || Nominal Power Handling 1 :: 1000 W || Continuous power handling 2 :: 2000 W || Sensitivity (1W/1m) 3 :: 94.0 dB || Frequency Range :: 40 - 1500 Hz || Voice Coil Diameter :: 100 mm (4.0 in) || Winding Material :: Copper || Former Material :: Glass Fibre || Winding Depth :: 25.0 mm (1.0 in) || Magnetic Gap Depth :: 11.0 mm (0.43 in) || Flux Density :: 1.1 T
DESIGN || Surround Shape :: Triple Roll || Cone Shape :: ExponentialMagnet Material :: Neodymium Inside Slug || Spider :: Double Silicone || Pole Design :: T-Pole || Woofer Cone Treatment :: TWP Waterproof Both Sides || Recommended Enclosure :: 40.0 dm3 (1.41 ft3) || Recommended Tuning :: 50 Hz
PARAMETERS || Resonance Frequency :: 40 Hz || Re :: 3.6 Ω || Qes :: 0.23 || Qms :: 7.05 || Qts :: 0.22 || Vas :: 46.5 dm3 (1.64 ft3) || Sd :: 531.0 cm2 (82.0 in2) || η? :: 1.27 % || Xmax :: ± 10.0 mm || Xvar :: ± 10.0 mm || Mms :: 133.0 g || Bl :: 23.04 Txm || Le :: 1.35 mH || EBP :: 173 Hz
MOUNTING AND SHIPPING INFO || Overall Diameter :: 320 mm (12.6 in) || Bolt Circle Diameter :: 300 mm (11.8 in) || Baffle Cutout Diameter :: 280.0 mm (11.0 in) || Depth :: 143 mm (5.63 in) || Flange and Gasket Thickness :: 12 mm (0.47 in) || Air Volume Occupied by Driver :: 4.0 dm3 (0.14 ft3) || Net Weight :: 8.0 kg (17.6 lb) || Shipping Units :: 1 || Shipping Weight :: 8.9 kg (19.62 lb) || Shipping Box :: 360x360x200 mm (14.17x14.17x7.87 in)

?


Recommended Uses For Product
For Surround Sound Systems


Compatible Devices
Television, Projector, Laptop, Desktop


Subwoofer Diameter
12 Inches


Mounting Type
Flush Mount


Unit Count
1.0 Count


Controller Type
Ring


Included Components
BC Speakers 12NBX100-4 LF Drivers 12-Inch


Product Dimensions
14.17"D x 7.87"W x 14.17"H


Speaker Maximum Output Power
2000 Watts


Item Weight
17.6 Pounds


Impedance
4 Ohm


Is Waterproof
True


Warranty Type
Limited


Number of Items
1


Speaker Size
12 Inches


Power Source
Corded Electric


Woofer Diameter
12 Inches


Tweeter Diameter
12 Inches


Package Type
Standard Packaging


Audio Driver Type
Dynamic Driver


Specific Uses For Product
For Surround Sound Systems


Manufacturer
BC Speakers


Item Weight
17.6 pounds


Item model number
12NBX100.4


Best Sellers Rank
#457,969 in Electronics ()#5,271 in


Date First Available
August 7, 2023


?
