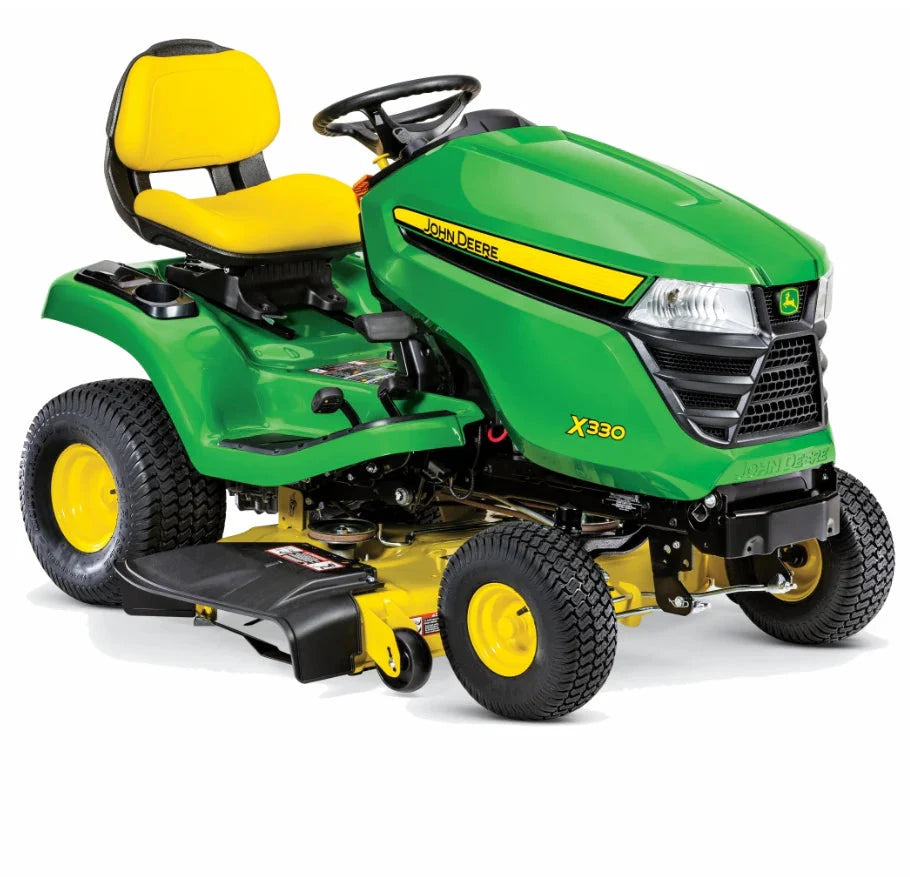

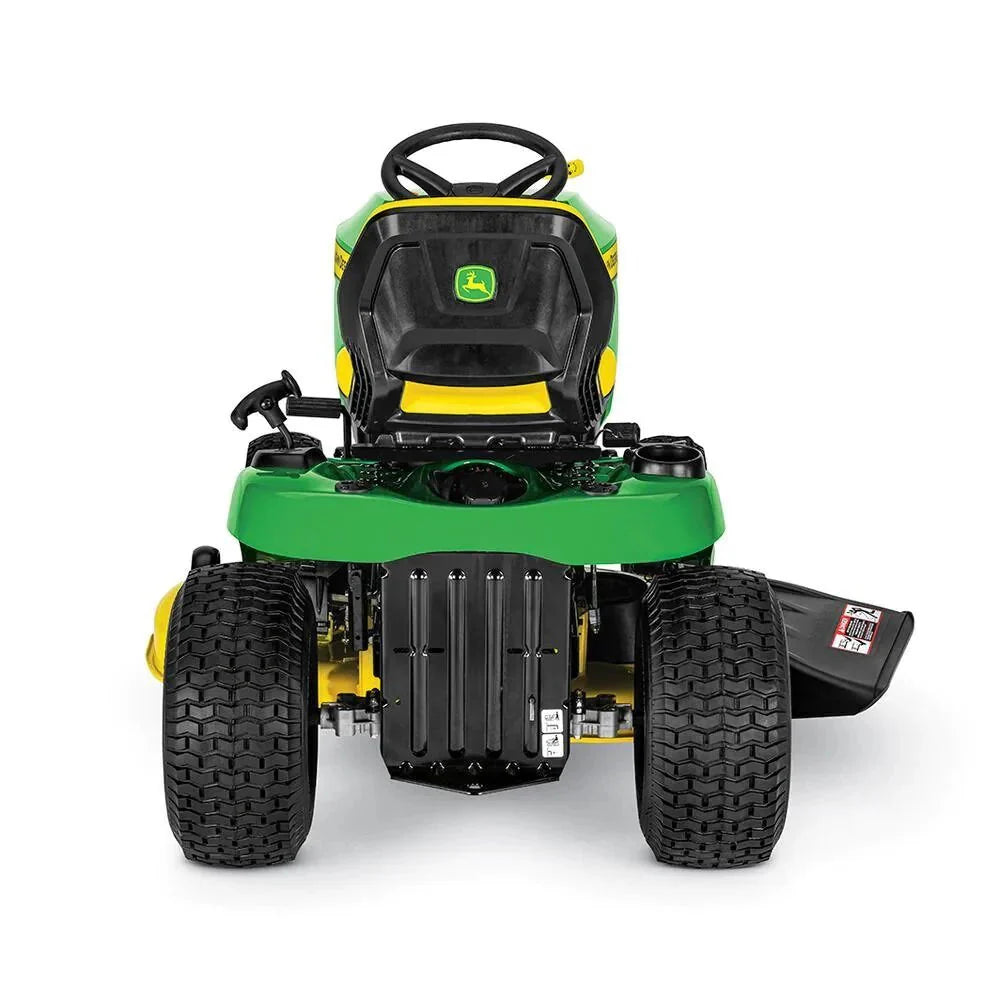

Gas Hydrostatic 42-inch 25 HP V-Twin ELS Lawn Tractor(Leather Seat)

Powered by 20 HP (14.9 kW) Cyclonic engine
42-in. Accel Deep Mower Deck
Upgraded instrument panel

Specifications


ENGINE POWER
22 HP 16.4 KW


OIL CHANGE
NO-TOOLS OIL DRAIN HOSE WITH REPLACEABLE FILTER


ENGINE MANUFACTURER/MODEL
44J6 CYCLONIC


TRANSAXLE TYPE
K46 HYDROSTATIC INTEGRATED WITH TRANSAXLE


TRANSAXLE CONTROL
TWIN TOUCH PEDALS


REAR TIRES
2010-8


LIFT SYSTEM TYPE
FOOT PEDAL WITH OPTIONAL ADJUSTABLE SPRING ASSIST KIT


CUTTING WIDTH
ACCEL DEEP MOWER DECK. 42 IN. 107 CM


U.S. WARRANTY
4 YEAR/300 HOUR BUMPER-TO-BUMPER* (*TERM LIMITED TO YEARS OR HOURS USED. WHICHEVER COMES FIRST. AND VARIES BY MODEL. SEE THE LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT AT JOHNDEERE.COM OR JOHNDEERE.CA/TUWARRANTY FOR DETAILS.)

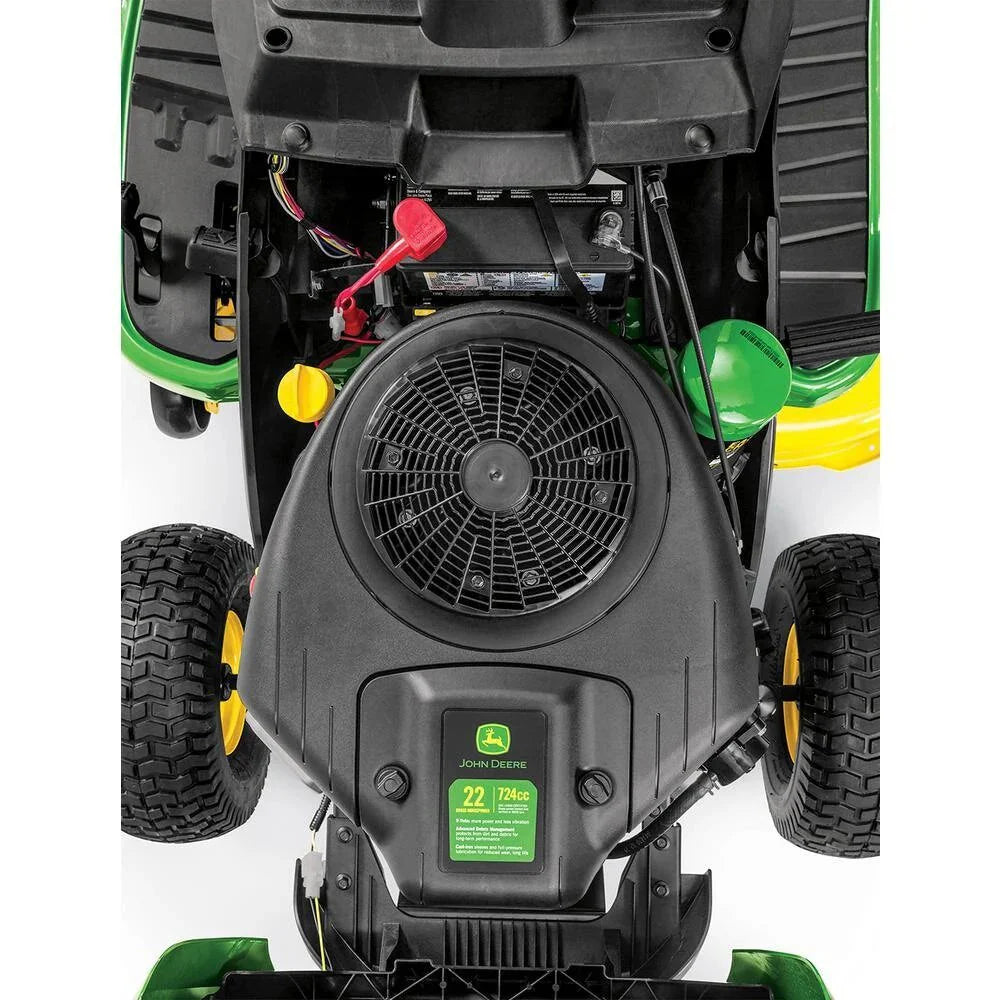

ENGINE
?


POWER
22 HP 16.4 KW


DISPLACEMENT
44.2 CU IN. 724 CC


MANUFACTURER/MODEL
44J6 CYCLONIC


TYPE
OVERHEAD VALVE. FULL-PRESSURE LUBE. OIL FILTER


CYLINDERS
V-TWIN. CAST-IRON LINERS


GOVERNOR
MECHANICAL


CHOKE/SPEED CONTROL
SEPARATE LEVERS. AUTOMATIC CHOKE RETURN


COOLING METHOD
AIR


AIR CLEANER
DRY. REPLACEABLE


OIL CHANGE
NO-TOOLS OIL DRAIN HOSE WITH REPLACEABLE FILTER


FUEL SYSTEM
?


TYPE
GASOLINE


FUEL DELIVERY
PULSE PUMP. CARBURETOR


FUEL GAUGE
GAUGE ON DASH


FUEL TANK LOCATION
REAR


FUEL FILL OPENING
ON LEFT FENDER. 3 IN. 7.6 CM


FUEL TANK CAPACITY
3.3 U.S. GAL. 12.5 L


ELECTRICAL SYSTEM
?


BATTERY
12 V 340 CCA


CHARGING SYSTEM
FLYWHEEL ALTERNATOR. REGULATED. 14 AMP


ENGINE STARTER
BENDIX


HOUR METER
YES


HEADLIGHTS
TWO STANDARD. INCANDESCENT. 27 W


TAILLIGHTS OR REFLECTOR
NO


BACKUP LIGHTS
NO


REAR WORK LIGHTS
NO


12-V OUTLET
OPTIONAL


TRANSAXLE
?


TYPE
K46 HYDROSTATIC INTEGRATED WITH TRANSAXLE


CONTROL
TWIN TOUCH PEDALS


CRUISE CONTROL
YES. BUTTON ON DASH


OIL COOLER
FINS AND FAN ON TRANSAXLE


OIL FILTER
INTERNAL. NOT REPLACEABLE


DIFFERENTIAL LOCK
NO


FORWARD SPEED
0-5.5 MPH 0-8.9 KM/H


REVERSE SPEED
0-4 MPH 0-6.4 KM/H


BRAKES
INTERNAL WET DISC


CHASSIS
?


FRAME
WELDED HEAVY-DUTY


PRIMER/PAINT
E-COAT/POWDER


WEIGHT BRACKET
STANDARD REAR. OPTIONAL FRONT


RECEIVER HITCH
NO


FRONT AXLE
CAST IRON FRONT AXLE. FRONT WHEEL BALL BEARINGS


SPINDLE BUSHINGS
NO


FRONT TIRES
156-6


REAR TIRES
2010-8


HOOD MATERIAL
FULLY ENCLOSED. MOLDED-IN COLOR MATERIAL REDUCES SOUND. WILL NOT RUST OR DENT


FENDER DECK MATERIAL
STAMPED STEEL


FLOOR MATS
SURE-GRIP RUBBER


STORAGE
YES. UNDER SEAT AND COVERED TOOLBOX


SERVICE INTERVAL DECAL
YES


FENDER HANDLES/GRIPS
NO


CUP HOLDER
YES


EQUIPMENT MOUNTING
YES. HEAVY DUTY


MAXIMUM TOWING CAPACITY
600 LB 272 KG


STEERING
?


TYPE
MANUAL. SECTOR AND PINION


FOUR-WHEEL STEER
NOT AVAILABLE ON THIS MODEL


STEERING WHEEL
LARGE. 14 IN. 35.6 CM


TILT STEERING WHEEL
NO


TURNING RADIUS
16 IN. 40.6 CM


UNCUT CIRCLE RADIUS
26 IN. 66 CM


SEAT
?


TYPE
OPEN-BACK DESIGN WITH GRASP


SEAT BACK HEIGHT
15 IN. 38 CM


ARMRESTS
NO


FORE-AFT ADJUSTMENT
WHILE SEATED. BALL BEARING SLIDE RAIL. 15-POSITION. 6.6 IN. 17 CM


SEAT SUSPENSION
TILT. TWO COIL SPRINGS. THREE-POSITION NO-TOOLS ADJUSTMENT FOR OPERATOR WEIGHT


LIFT SYSTEM
?


TYPE
FOOT PEDAL WITH OPTIONAL ADJUSTABLE SPRING ASSIST KIT


HYDRAULIC OUTLETS
NO


MOWER CUT HEIGHT
13 POSITIONS. 1-4 IN. 2.5-10.2 CM


CUT HEIGHT INCREMENTS
0.25 IN. 0.64 CM


PRESET CUT HEIGHT
YES


MOWER DECK
?


TYPE
SIDE DISCHARGE


CUTTING WIDTH
ACCEL DEEP MOWER DECK. 42 IN. 107 CM


CONSTRUCTION
STAMPED STEEL DECK SHELL


MOWER DECK MATERIAL
12 GAUGE 0.105 IN. 2.7 MM


MOWER WASH PORT
YES


MOWER DRIVE SYSTEM
ELECTRIC POWER TAKE-OFF (PTO) CLUTCH. IN-LINE BELT


MOWER WHEELS
TWO


MOWER WHEEL ADJUSTMENT
FOUR-POSITION. TOOL REQUIRED


MOWER LEVEL ADJUSTMENT
EXACT ADJUST PORTS AND ONBOARD DECK-LEVELING GAUGE


MOWER ATTACHABILITY
?


TYPE
SLIDE UNDER TRACTOR


?
?
